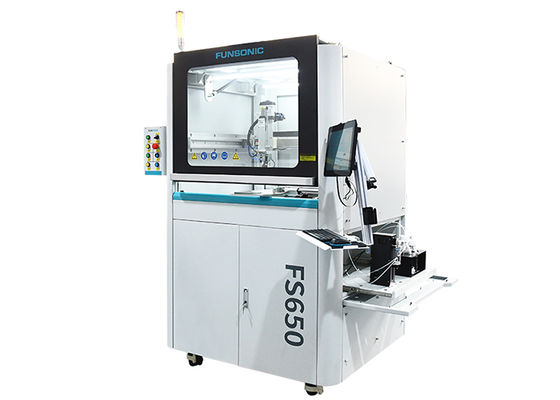

Semiconductor Glass Protective Film Ultrasonic Functional Coating

MOQ: 1 Einheit
Preis: Negotation
Standardverpackung: Von Holzhülle verpackt
Zahlungsmethode: T/T, Western Union
Versorgungskapazität: 1000 Einheiten pro Monat
Detailinformationen
Produktbeschreibung
Detailinformationen
Herkunftsort
CHINA
Markenname
FUNSONIC
Zertifizierung
CE
Modellnummer
FS650
Produktionsname:
Produktion Ultraschallsprühsystem
Frequenz:
20-200khz für die Auswahl
Maximale Kraft:
100W
Kontinuierliches Sprühvolumen Max:
20-1200 ml/h/Stück, skalierbar
Wirksame Sprühbreite:
2-260 mm/Stück, skalierbar
Einheitlichkeit der Sprühe:
<5%
Viskosität der Lösung:
≤ 30cps
Eingangsspannung:
220V±10%/50-60Hz
Hervorheben:

semiconductor glass protective film

,

ultrasonic spray coating machine

,

functional coating with warranty

Produktbeschreibung

Semiconductor Glass Protective Film Ultrasonic Functional Coating


Description:


Ultrasonic functional coating of semiconductor glass protective film is a high-tech material commonly used to improve the wear resistance, stain resistance, and reflectivity of glass surfaces. The ultrasonic functional coating of semiconductor glass protective film forms a uniform and compact film layer on the substrate surface through ultrasonic vibration, which not only improves light transmittance, reduces reflection, and enhances visual effects, but also enhances the scratch resistance of the glass, prolongs its service life, and reduces the adhesion of dirt and fingerprints, making it easy to clean.



Parameters:


Product Type

Ultrasonic Precision Spray Coating Machine Laboratory desktop Type

FS310

Intelligent Ultrasonic Precision Coating Machine desktop Type

FS620

Benchtop Ultrasonic Spray Coating Machine

FS650
Spray Nozzle Operating Frequency 20-200KHz 20-200KHz (Normally use 60100110120K) 20-200KHz (Normally use 60100K)
Nozzle Power 1-15W 1-15W 1-15W
Continuous Spraying Volume Max 0.01-50ml/min 0.01-50ml/min Determine based on the type and quantity of nozzles configured (Max 5 Nozzles)
Effective Spraying Width 2-100mm 2-100mm Determine based on the type and quantity of nozzles configured
Spray Uniformity ≥95% ≥95% ≥95%
Solution Conversion Rate ≥95% ≥95% ≥95%
Dry Film Thickness 20nm-100μm 20nm-100μm 20nm-100μm
Solution Viscosity ≤30cps ≤30cps ≤30cps
Temperature Range 1-60℃ 1-60℃ 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.10MPA ≤0.15MPA ≤0.15MPA
Input Voltage 220V±10%/50-60Hz 220V±10%/50-60Hz 220V±10%/50-60Hz
Exercise Mode X+Y two axis fully automatic, Z-axis manual adjustment XYZ three-axis, independently programmable A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module
Control Mode Micro computer card, 7-inch touch screen+buttons FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions
Liquid Supply Method Precision injection pump Precision injection pump Precision injection pump
Ultrasonic Dispersion System (Optional) 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler



Precautions:


1. Material selection
Coating material: Select high-quality resins and additives to ensure the wear resistance and adhesion of the coating.
Solvent compatibility: Ensure that the solvent used is compatible with the coating material to prevent coating failure.
2. Surface treatment
Cleanliness: The glass surface must be completely clean, removing dust, oil stains, and other impurities to ensure good adhesion.
Surface roughness: Proper surface treatment can increase coating adhesion and prevent coating peeling.
3. Ultrasonic parameters
Frequency and power: Adjust the frequency and power of the ultrasonic spraying equipment to achieve the best spraying effect.
Spray angle and distance: Control the spray angle and distance to ensure even distribution of the coating.
4. Drying and curing
Temperature and Time: Strictly control the temperature and time of drying and curing to ensure complete curing of the coating.
Avoid contamination: During the drying and curing process, avoid external contaminants from contacting the coating.



Semiconductor Glass Protective Film Ultrasonic Functional Coating

Semiconductor Glass Protective Film Ultrasonic Functional Coating 0

Semiconductor Glass Protective Film Ultrasonic Functional Coating 1


Tags:

Anti-Restenose Polymere medizinische Sprühmaschine,

Ultraschallsonde-Düsenart 40Khz,

Ultraschallbreitflächen-Sprühdüse
