Ultrasonic Atomization And Aggregation Of Solar Glass Coating

MOQ:	1 EINHEIT
Preis:	Negotation
Standardverpackung:	Von Holzhülle verpackt
Zahlungsmethode:	T/T, Western Union
Versorgungskapazität:	1000 Einheiten pro Monat

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort

China

Markenname

FUNSONIC

Zertifizierung

Modellnummer

FS620

Produktionsname:

Ultraschallpräzisionssprühmaschine

Frequenz:

20-200khz für optionale

Maximale Kraft:

Kontinuierliches Sprühvolumen Max:

20-1200 ml/h/Stück, skalierbar

Wirksame Sprühbreite:

2-260 mm/Stück, skalierbar

Einheitlichkeit der Sprühe:

Viskosität der Lösung:

≤ 30cps

Eingangsspannung:

220V±10%/50-60Hz

Hervorheben:

20-200KHz Frequency Ultrasonic Spray Coating Machine

95% Spray Uniformity Ultrasonic Precision Spraying Machine

20-1200ml/h Spraying Volume Ultrasonic Spray Coater

Produktbeschreibung

Ultrasonic Atomization And Aggregation Of Solar Glass Coating

Product Overview

Solar glass coating ultrasonic atomization aggregation coating is an emerging technology primarily used to enhance the performance of glass surfaces. This coating maintains high transparency without affecting the visual effect of the glass, effectively prevents water droplets and oil stains from adhering, facilitates easy cleaning, improves scratch resistance, and extends service life.

Technical Specifications

Parameter	Specification
Product Type	Intelligent Ultrasonic Precision Coating Machine Desktop Type FS620
Spray Nozzle Operating Frequency	20-200KHz (Normally use 60/100/110/120K)
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.01-50ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.15MPA
Input Voltage	220V±10%/50-60Hz
Exercise Mode	XYZ three-axis, independently programmable
Control Mode	FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	100W

Performance Advantages

Improved Wear Resistance: Enhanced by 30% to 80% compared to uncoated glass, depending on coating thickness, material composition, and environmental factors
Testing Standards: Low friction coefficient reduces scratch potential; evaluated using Mohs hardness and other hardness testing methods
Practical Applications: Automotive glass shows significantly higher wear resistance in frictional environments with dust or particulate matter; architectural glass effectively resists light scratches and maintains smooth surfaces
Maintenance Factors: Use soft fabric for cleaning to preserve coating integrity and wear resistance

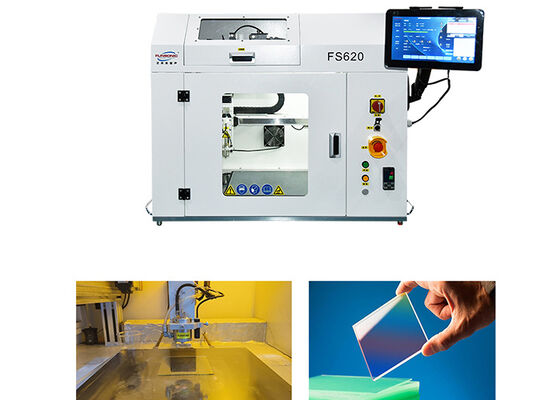

Product Images
